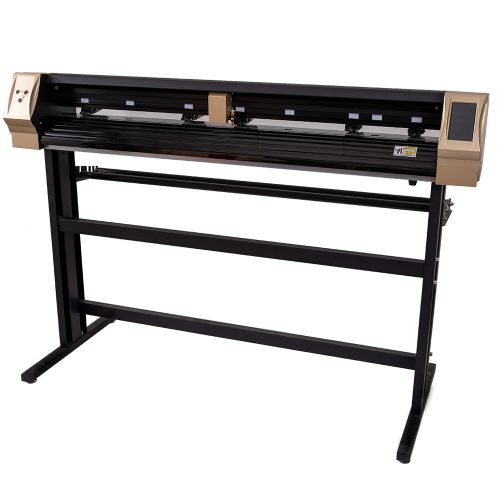

Cutting plotter with camera and servo motor PerfectCut VH60

• Details
• Info

Details

Camera for 100% automatically contour cutting.
Servo system
Automatically calibrate, automatically scan marks, and automatically start cut. Capable for more materials compare with sensor or laser.
Faster and higher accurate.

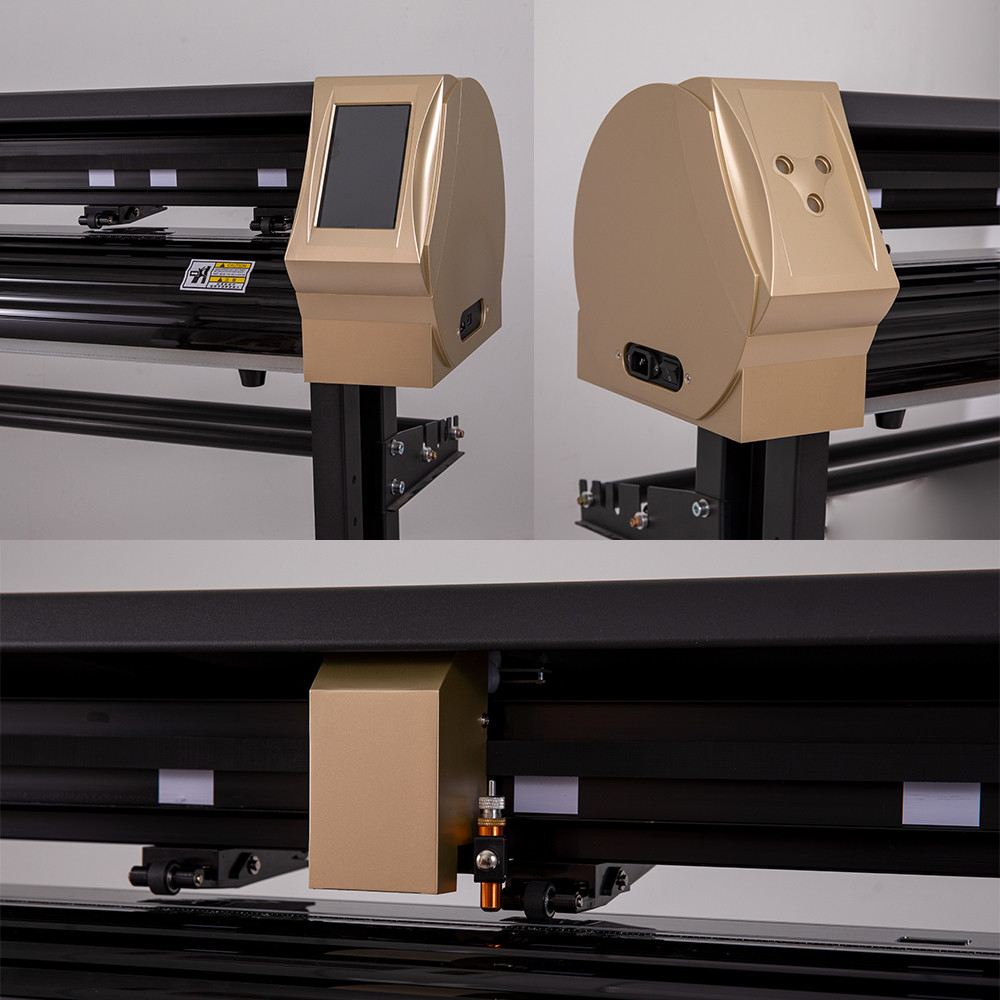

Moveable pinch rollers, for many different width of material.

Max media width: 1650 mm
Max cutting width: 1540 mm
Max contour cutting width : 1500 mm
Camera(capable for any materials and mark)
Metal body
Sensitive touch screen
Max cutting force: 2000 g
Number of heads: 1
Motor: servo
Processor memory: 128 MB
Cutting precision: +/- 0.01mm
Max moving speed: 1200mm/s
Max cutting speed: 800mm/s
Connector interface: USB flash/ WIFI/ USB cable
Working environment: +5°C - +35°C
Noise: < 65 db
LED light bar

Info

Weight:

28 kg/бр.
